H3C wap712c Fit to Fat

发表于 分类于 阅读次数：

fat转fit简单，直接在web界面操作即可。但是fit转fat就困难多了。

TFTP服务器

MAC：

1
2
3
4
5
6
7
8
9
10
11
brew install tftp

chmod -R 777 /private/tftpboot
#/private/tftpboot是默认路径，需要改变其读写权限(非常重要)
#开启
sudo launchctl load -F /System/Library/LaunchDaemons/tftp.plist
sudo launchctl start com.apple.tftpd

#关闭
sudo launchctl unload -F /System/Library/LaunchDaemons/tftp.plist
sudo launchctl stop com.apple.tftpd

使用

1
2
3
4
5
6
7
8
9
10
11
12
***:~ ***$ tftp
tftp> connect localhost
tftp> status
Connected to localhost.
Mode: netascii Verbose: off Tracing: off
Rexmt-interval: 5 seconds, Max-timeout: 25 seconds
tftp> verbose
Verbose mode on.
tftp> get 1.txt
getting from localhost:1.txt to 1.txt [netascii]
Received 9 bytes in 0.0 seconds [inf bits/sec]
tftp> quit

准备固件

1
2
wget https://img.econow.cn/network/apwtu430_v1.06.btw
wget https://img.econow.cn/network/wa4300s_fat.bin

版本降级

  • 检查设备信息

    1
    2
    3
    4
    5
    6
    <H3C>display device manuinfo
    DEVICE_NAME:WAP712C
    DEVICE_SERIAL_NUMBER:2198  01A0 X491 7CG0 04F8
    MAC_ADDRESS:307B-ACB2-5800
    MANUFACTURING_DATE:2017-12-20
    VENDOR_NAME:H3C

  • 开机启动检查软件版本信息

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    System is starting...

    Press Ctrl+D to access BASIC-BOOTWARE MENU

    Booting Normal Extended BootWare

    The Extended BootWare is self-decompressing.................................

    ...Done.

    ****************************************************************************

    *                                                                          *

    *                   H3C WA5530 BootWare, Version 7.09                      *

    *                                                                          *

    ****************************************************************************

    Copyright (c) 2004-2017 New H3C Technologies Co., Ltd.

    注意此处的BootWare版本为7.09，要切换Fat模式必须降级。

  • 降级

第一步 格式化文件系统 Control + F

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

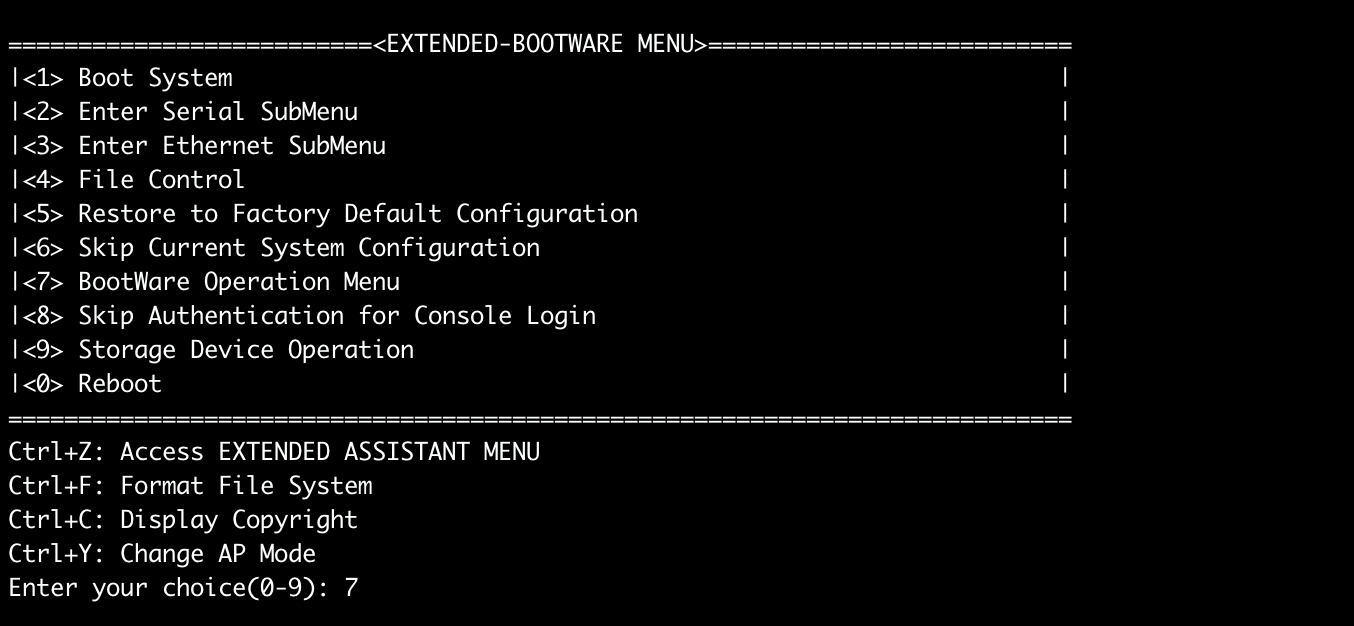

==========================<EXTENDED-BOOTWARE MENU>=============

|<1> Boot System                                                           |

|<2> Enter Serial SubMenu                                                  |

|<3> Enter Ethernet SubMenu                                                |

|<4> File Control                                                          |

|<5> Restore to Factory Default Configuration                              |

|<6> Skip Current System Configuration                                     |

|<7> BootWare Operation Menu                                               |

|<8> Skip Authentication for Console Login                                 |

|<9> Storage Device Operation                                              |

|<0> Reboot                                                                |

第二步：进入V7boot 通过网卡口，传入V6 AP bin文件，提示更新boot版本的时候选择Y

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
进入V7boot 通过网卡口，传入V6 AP bin文件，提示更新boot版本的时候选择Y

Enter your choice(0-5): 5

==========================<ETHERNET PARAMETER SET>==========================
|Note:       '.' = Clear field.                                            |
|            '-' = Go to previous field.                                   |
|         Ctrl+D = Quit.                                                   |
============================================================================
Protocol (FTP or TFTP) :tftp
Load File Name         :apwtu430_v1.06.btw
                       :
Target File Name       :apwtu430_v1.06.btw
                       :
Server IP Address      :192.168.21.1
Local IP Address       :192.168.21.2
Subnet Mask            :255.255.255.0
Gateway IP Address     :0.0.0.0

第三步：导入V6 AP版本

简单来说和之前的部分一样，tftp导入

第四步：重启，降级完成

切换模式

重启完成后，展示以下界面，可以选择FAT模式。

1
2
3
4
5
6
7
8
| <1> Display Current Device Model                          |

| <2> Set The Device Into FIT AP Model                      |

| <3> Set The Device Into FAT AP Model                      |

| <0> Exit To Main Menu

参考

http://kms2.h3c.com/View.aspx?id=57788

降级boot

重启，再次格式化
切换模式，导入fat镜像文件

初始化ip
